Harden® Two Shaft Shredder TD Series (Double Drive) - Heavy Duty

Categories	Two Shafts Shredder
Brand	Harden
Model	TD612
FOB port	Shenzhen/Guangzhou/Zhongshan
Terms of Payment	L/C, Western Union, T/T
Download DOC
Update Time	2021-09-23

Contact Now

Detail Information

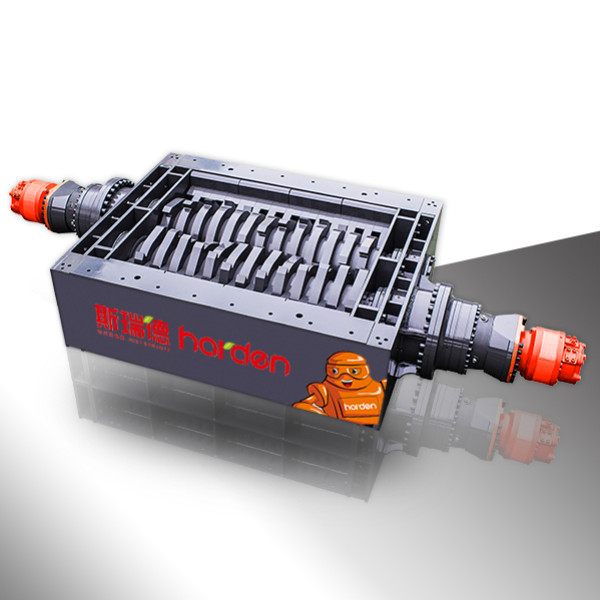

Harden® Double Shaft Shredder - Two Drives - Heavy Duty

Product catalog download >>

Harden® TD/TDH series are heavy-duty double shaft shredder that are suitable to process all kinds of solid waste and gain recognition from customers by its powerful and stable performance. TD series are driven by electrical motors and TDH by hydraulic system. The installed power is range from 60 to 400KW.

Harden® owns several advanced technologies of heavy-duty double shaft shredder, including splined shaft coupling, integrated knife box assembly and so on.

Features of Harden® Double Shaft Shredder

Imported high strength alloy knives

Stable quality & durable

Exclusive cutting chamber design

Works smoothly & strong bearing capacity

Unique spline bearing pedestal

Quick shaft change & uniform stress

Transmission protection structure

Labyrinth dust prevention & oil isolation

Professional hydraulic system

Automatic control & strong power

Drawing

Parameter

Model	TD612	TD912 TDH912 (Hydraulic)	TD1216 TDH1216 (Hydraulic)
Motor Power (KW)	45+45	75+75 75 / 132 / 160 (Hydraulic)	90 +90 / 132+132 200 / 160 *2 (Hydraulic)
Rotating Speed (RPM)	14-20	11-20 6-16	10-20 7-21
Size of Cutting Chamber (AxB)(mm)	650*1200	900*1200	1200*1600
Machine Dimensions (LxWxH)(mm)	43902180600	510028003200 420017003200	590037003500 460020003200
Quantity of Blade （PCS）	40/20	40/20 20	26
Capacity (Ton/Hour)	3~20	3~30 (TD912) 2~9 (TDH912)	10~50 (TD1216) 8~30 (TDH1215)
